Chuango CG-105S On-Site Alarm System

Double Agent

The Chuango CG-105S can be used in either of two ways:

1. If you already have a Chuango alarm system such as the H4-LTE or OV-300, you can use this as an extension of your alarm system.  The WS-105 siren in this package acts only as a siren so the package gives you an extra siren, motion sensor, door / window contact and two additional remote controls.  Place the sensors in the desired location and easily connect them to the base system.  The siren results in a loud alarm sounding during a detection. This way you can secure your home, office or shed in no time.

2. You can also use this set as a stand-alone alarm.  The WS-105 siren can act as a stand-alone on-site controller and connect with the included accessories (PIR motion sensor, door/window contact and remote controls).  You can also purchase additional sensors and accessories for it.  When the alarm goes off, the WS-105 siren sounds loudly with a flashing blue light.

Specifications:

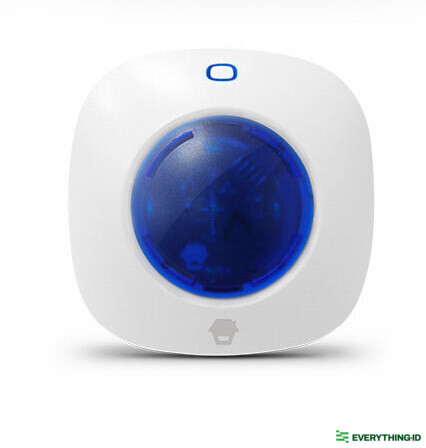

• Alarm Panel Model No.WS-105
• Power InputAC 100-240V, 50/60Hz
• Static Current＜13mA
• Alarm Current＜100mA
• Internal Siren Volume90 dB
• Supported Accessories40 pcs
• Battery3.7V 600mAh lithium battery
• Wireless Frequency: 433MHz
• Housing MaterialABS plastic
• Operating conditionTemperature -10℃～+55℃
• Relative humidity≤ 80% (non-condensing)
• Dimensions (L×W×H)90x 90 x 42.2mm (Not include the plug part)

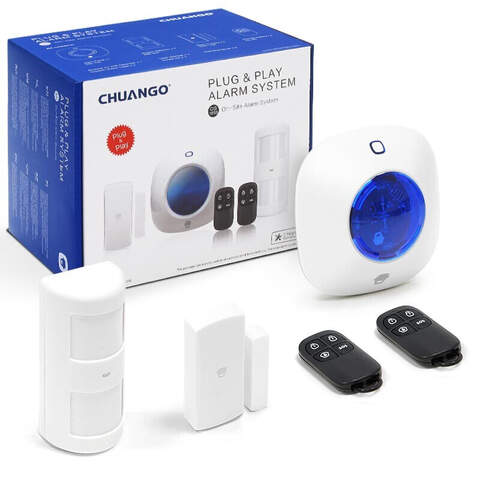

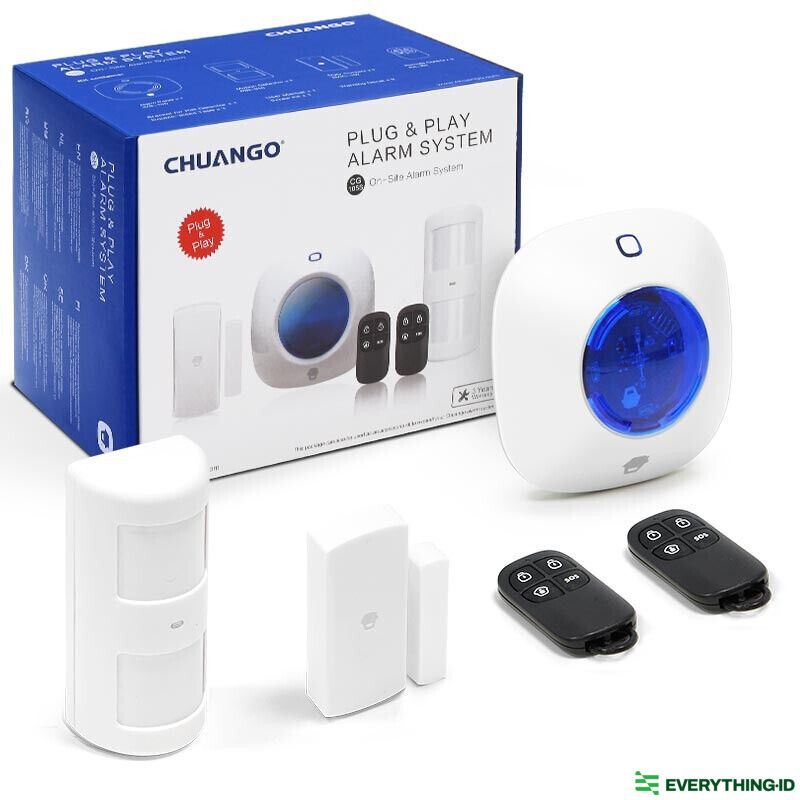

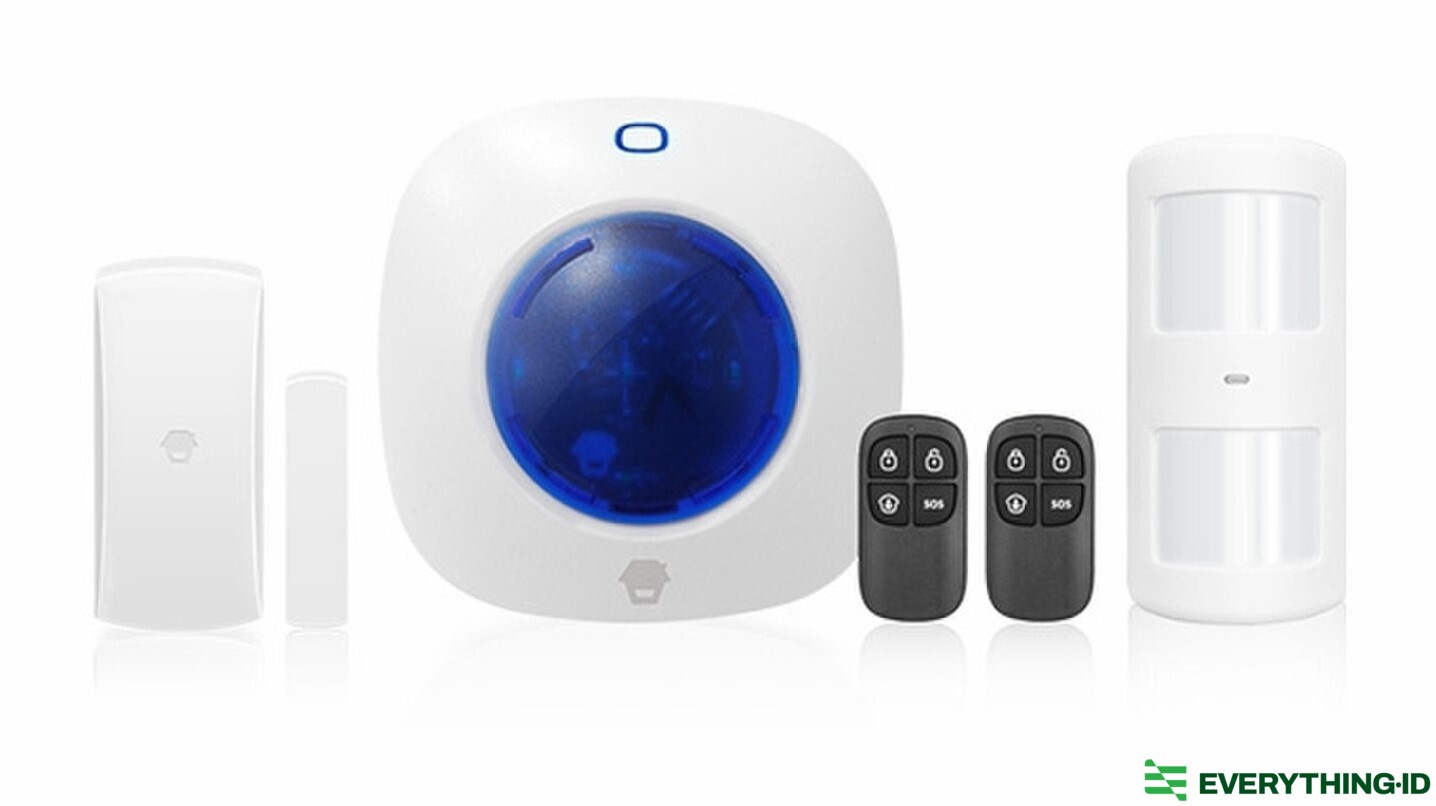

What's in the box:

• 1x WS-105 Siren & On-Site Alarm Panel
• 1x PIR-910 Wireless PIR Motion Detector
• 1x DWC-102 Wireless Door/Window Contact
• 2x RC-80 Wireless Remote Control
