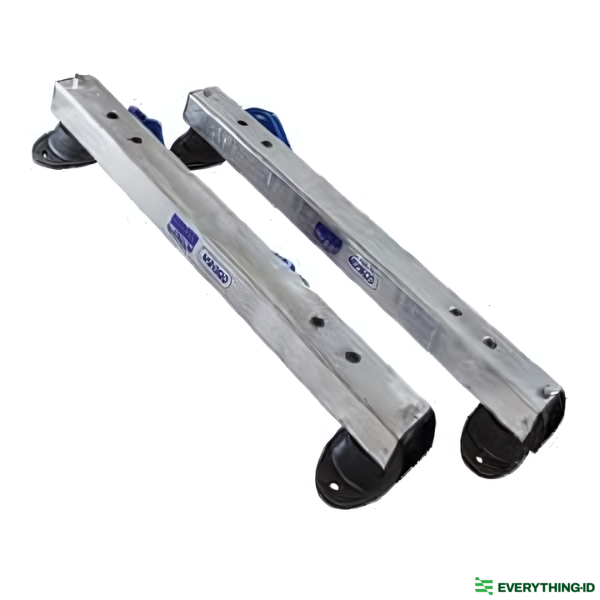

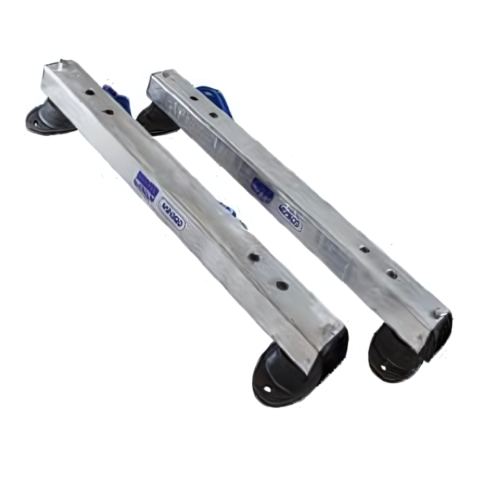

Tru-Test MP 800 Heavy Duty Load Bars - 3000kg Capacity

A multi-purpose load bar that can be used under cattle platforms, sheep crates and wool presses.

Tru-Test load bars are known for their tough durability and reliable performance, even in harsh conditions.

The internal cells are made from aircraft-grade aluminium and are fully sealed to block out moisture. They also come with heavy-duty TPR/PVC cables, which help reduce the risk of cable damage.

For cattle crushes or crates, it's recommended to use the Heavy Duty load bars or Extra Heavy Duty load cells.

Features

Versatile - Can be temporarily installed and when used with a lightweight Tru-Test aluminium platform can be easily transported between different weighing sites.

Compatible - Can be used with any weigh scale indicator in the Tru-Test range without callibration.

Corrosion resistant - Galvanised steel housing protects the bar in the tough agricultural environment.

Sealed load cell - Protects the load cell against moisture damage allowing the load bars to remain outside.

Easy to set up. Simply requires a firm level surface and a rigid crate or platform.

Dairy Option. MP600 WOW!™ version designed specifically to stand up to the dairy environment.

Specifications

• Cable Length: 5m (16 ft)
• Resolution: Fine mode - 0.1 kg (0.2 lb) when used with Tru-Test weigh scale indicators. Normal - 0.5 kg (1 lb)
• Total Capacity: 3,000 kg
• Overall Height: 92mm
• Bar Section Width: 75mm
• Nominal Length: 800mm
• Accuracy: +/- 1 % or 2 resolutions, whichever is greater
• Weight: 16.5Kg (pair)
