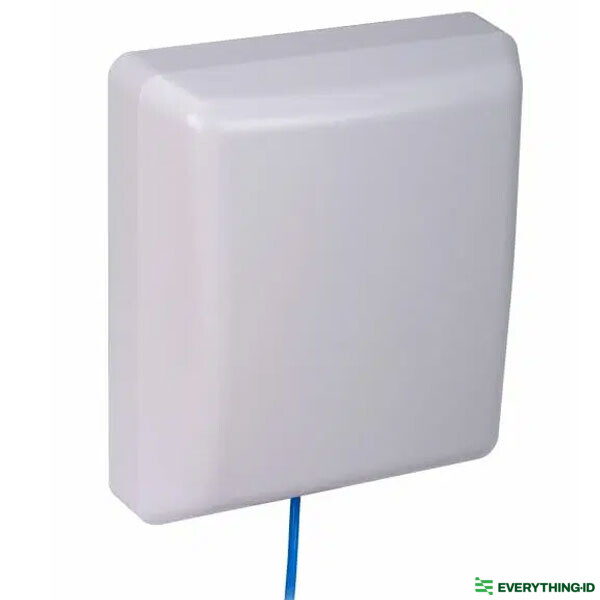

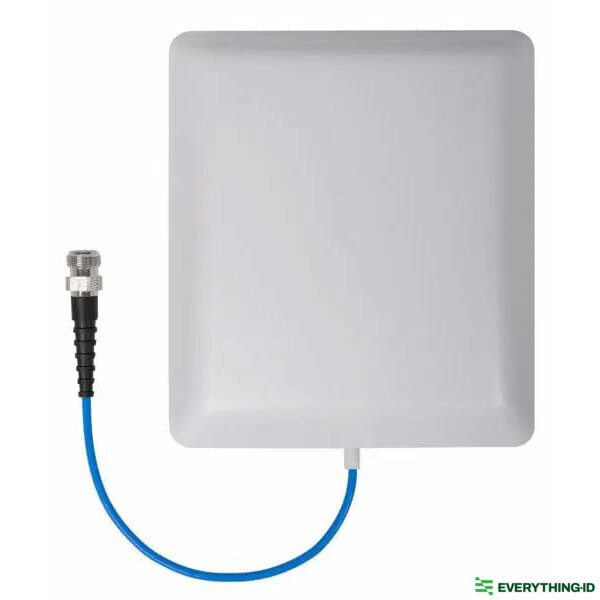

Blackhawk 4G-5G Indoor Wall Mount 5-7dBi Panel Antenna, 698 to 4000 MHz, N Female -150dBc PIM

The Blackhawk Indoor Wall Mount Antenna is meticulously engineered to augment mobile coverage within indoor spaces when integrated with a cellular repeater system. These indoor panel antennas offer a lightweight and cost-effective solution for effectively extending mobile signal reach in a forward direction. For instance, they can be optimally placed to project coverage down a hallway or affixed to the rear wall of a supermarket.

These indoor panel antennas are classified as "semi-directional." They are designed to provide a moderate gain of 5 to 7 dBi, ensuring that signal coverage is efficiently transmitted within a wide arc, typically spanning 60 to 90 degrees, contingent on the specific frequency band in use.

This versatile antenna is compatible with major 4G and 5G mobile networks worldwide, making it a globally suitable choice for enhancing mobile connectivity. Furthermore, it features a low-PIM (Passive Intermodulation) design, enabling it to transmit multiple carriers simultaneously from a single antenna, thus ensuring robust and interference-free signal propagation.

Features

• Provides a 5 dBi gain for 698 to 960 MHz
• Provides a 7 dBi gain for 1710 to 4000 MHz
• 4G LTE, 5G NR bands 698 to 4000 MHz
• UV stable ABS radome
• Semi-Flexible blue RG-402 cable tail
• Ideal for commercial in-building coverage
