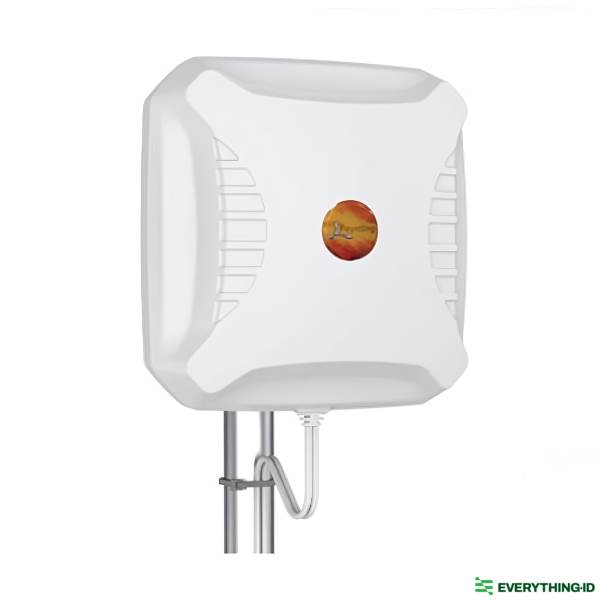

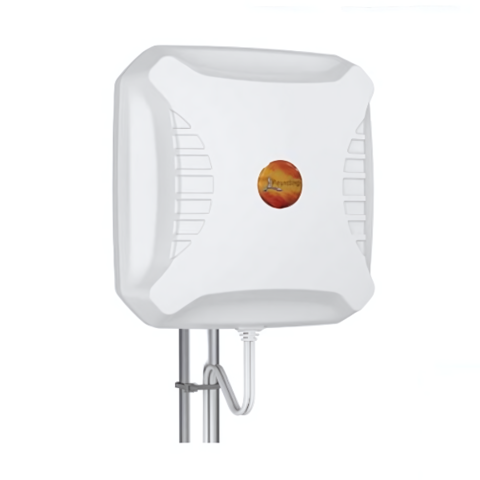

MIMO Directional Antenna

This Cross Polarised (XPOL) 2x2 MIMO antenna covers 2G, 3G, 4G, and 5G bands, including 3400-3800MHz. Its well-controlled radiation patterns ensure excellent performance. The kit includes a mounting bracket and 10 metres of low-loss cable with SMA connectors.

This is best used in Smart Utilities such Smart Power, Gas & Water Metering, Smart Buildings: Climate control, access control, security, irrigation, Digital Signage, Warehouses & Logistic systems Industrial factory automation, robotic machinery and other M2M systems Transport, (Busses, Utility & Public Safety) Mining Vehicles & Machinery communications, telemetry and automation, (M2M & IoT) Agricultural machinery Marine: small boats, yachts near to coastlines or inner waters.

Features

• New advanced metamaterial technology
• Exceptional performance over the main 4G/5G bands
• High Gain for the antenna size
• Wideband MIMO 4G/5G antenna
• Backwards compatible 2G/3G/4G/LTE antenna (5G Ready)
• Two cross polarised antennas in one enclosure for optimal LTE performance

Specifications

• Frequency Bands: 698-960/1710-2700/3400-3800MHz
• Gain (max) Port 1 & 2: 9 dBi/10 dBi/11 dBi
• VSWR Port 1 & 2 <1.5:1 over 95% of the band
• Feed power handling 20W
• Input impedance 50 Ohm
• Polarisation ±45°
• Dimensions: 290mm x 265mm x 155mm
• Radome material: UV stable ASA
• Radome colour: White
• Mounting type: Wall and pole mount
