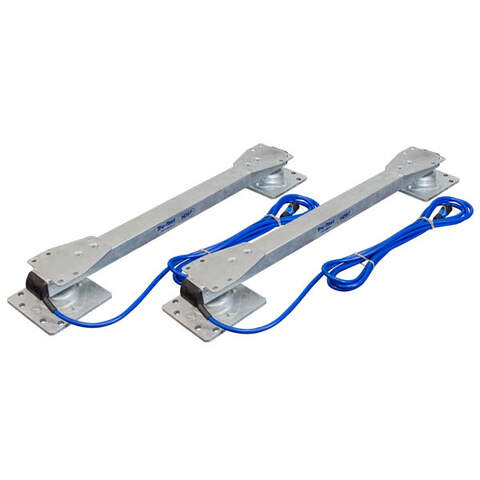

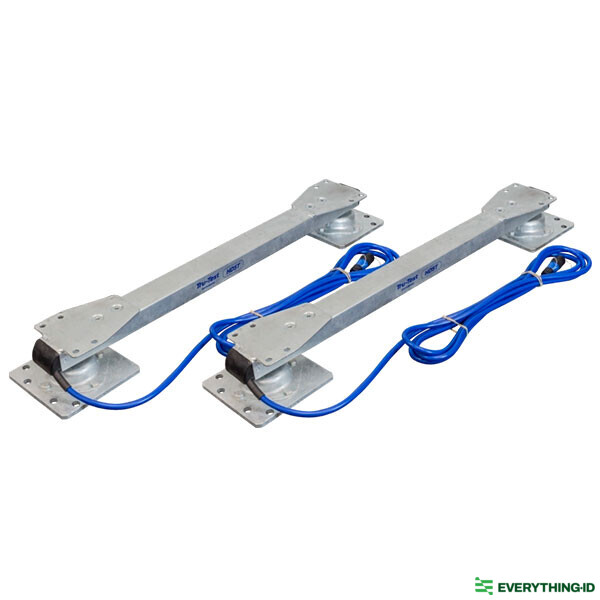

Tru-Test HD5T Heavy Duty 5000kg Capacity Load Bars

The Tru-Test HD5T Heavy Duty Load Bars offer a powerful weighing solution with a 5000kg capacity, designed for easy installation under even the heaviest cattle crushes. Known for their rugged durability, these load bars are built to endure the harshest agricultural environments.

The sealed load cell protects against moisture, allowing the bars to remain outside without damage, while the galvanized steel construction ensures long-lasting corrosion resistance. Featuring robust, heavy-duty TPR/PVC cables, the HD5T Load Bars are engineered for reliability and high performance, providing a seamless, durable setup for livestock weighing.

Specifications

• Cable Length: 5 M (16 Ft)
• Overall Height: 110 Mm (4.3″)
• Bar Section Width: 75 Mm (3”)
• Resolution: Base Resolution With Tru-test Scales: 2 X Hd5t Load Bars = 0.5 Kg (1 Lb)
• Total Capacity: 2 X Hd5t Load Bars = 5,000 Kg (11,000 Lb)
• Nominal Length: 1.12m (1115mm)
• Accuracy: +/- 1 % or 2 Resolutions, Whichever is Greater
• Weight Pair: 36 Kg (80 Lb)
