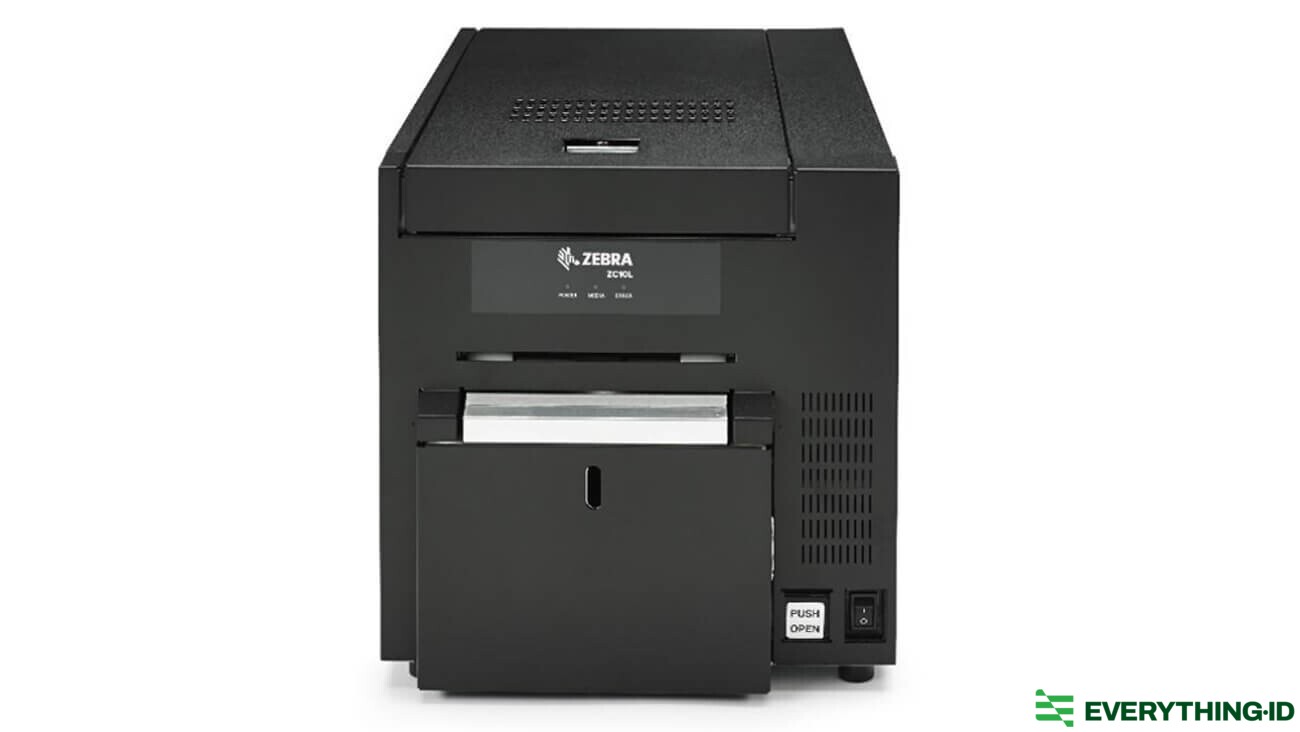

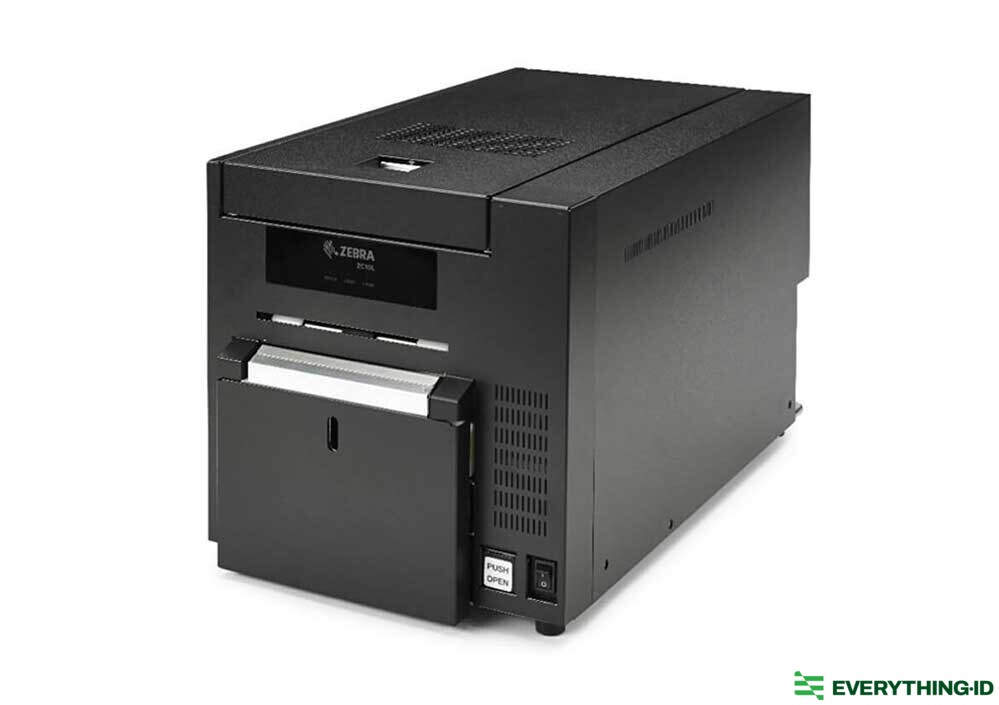

Zebra ZC10L Single-Sided Oversized ID Card Printer

Designed specifically for hospitality and event applications, the Zebra ZC10L™ is the only large-format, direct-to-card printer capable of printing full, edge-to-edge colour cards in a single pass.

With on-demand printing, there’s no need to pre-order or inventory partially pre-printed cards. Print custom, photo-quality guest badges and tickets exactly when you need them—reducing waste and eliminating leftover stock

Features

Full Edge-to-Edge Colour Printing

As the only large-format, direct-to-card printer offering full edge-to-edge colour in one printing process, the ZC10L provides maximum flexibility while reducing operational hassle.

You can also customise the back of cards with guest instructions or fine-print content using Zebra’s monochrome black ribbon.

Maximum Design Flexibility

Create visually compelling PVC cards using Zebra’s CardStudio design software—without the need to measure card sections or manage complex templates.

Designs can be updated right up until your event, allowing you to add sponsor logos, advertising, or guest photos at the point of entry for truly personalised cards and keepsakes.

Large Cards for Easy Identification

The ZC10L prints oversized 3.5” × 5.5” passes and badges that are easy to read from a distance, making them ideal for branding, security, and access control at busy events.

ZC10L Accessories & Consumables:

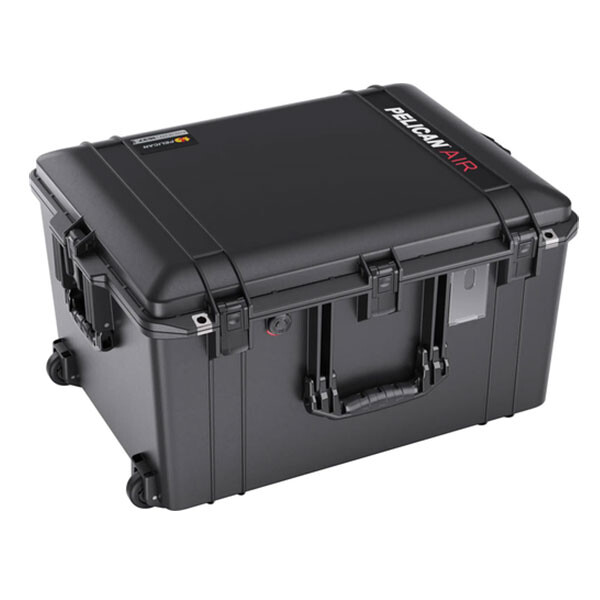

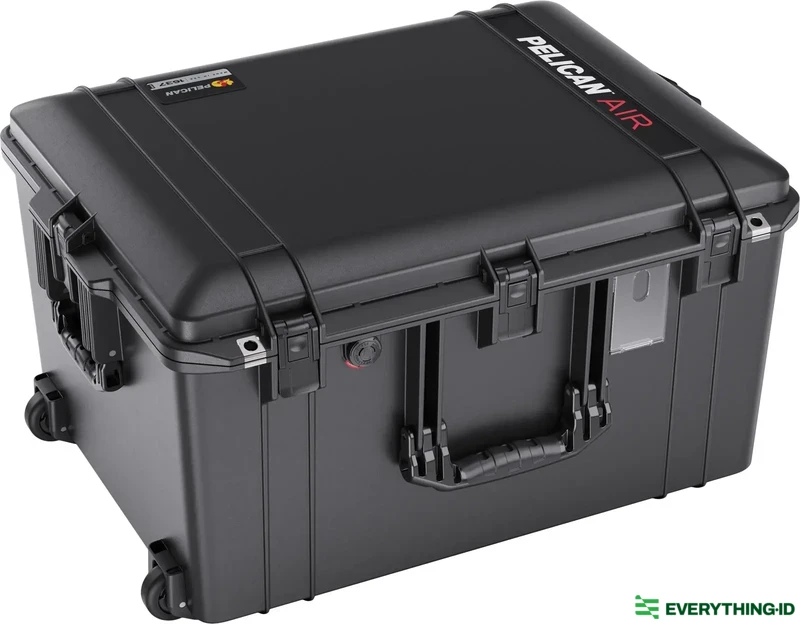

Zebra Pelican AIR 1637-ZC10L Case for Zebra ZC10L Printer (Click here to view)

Zebra 106000-10LHF1 Media Kit (Click here to view)

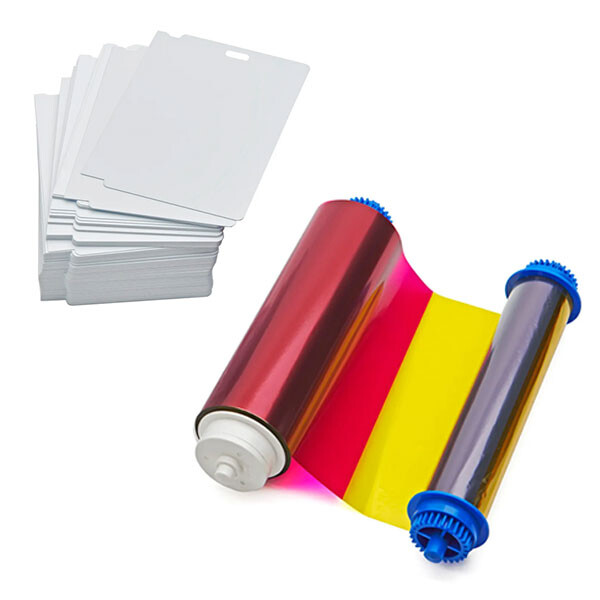

Zebra 106000-10L1 Media Kit (Click here to view)

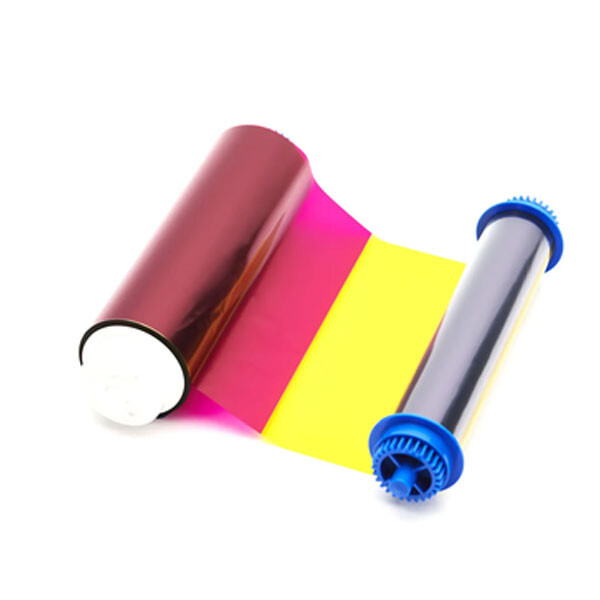

Zebra 800010-140 YMCO Ribbon - 400 images (Click here to view)

Zebra 106000-10L2 Media Kit (Click here to view)

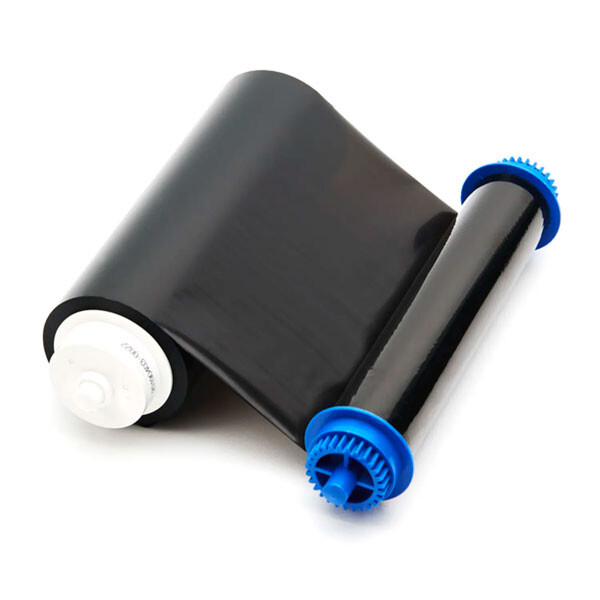

Zebra 800010-101 Black Ribbon - 2000 images (Click here to view)

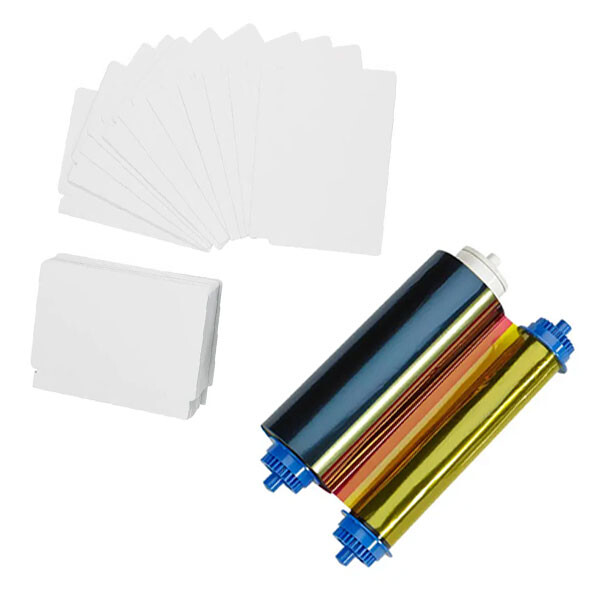

Zebra 106000-10L Media Kit (Click here to view)

Zebra 106001-10LHF2 Media Kit (Click here to view)

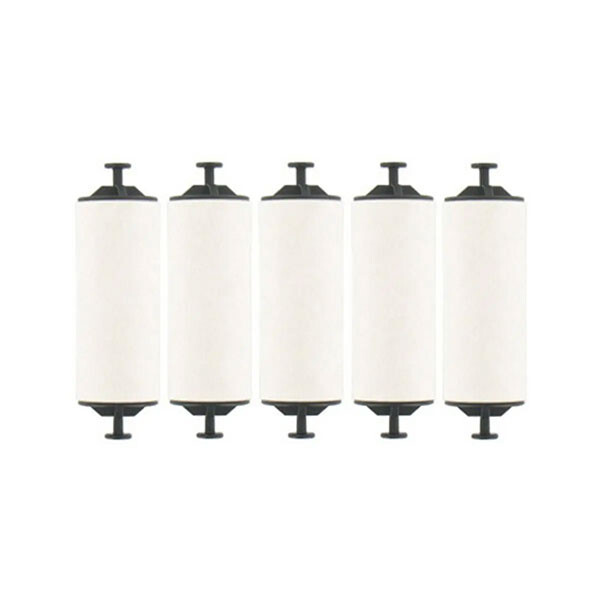

Zebra P1091995-019 Cleaning Roller (Click here to view)

Printer Specifications

• 300 dpi print resolution
• 64 MB memory (standard)
• Card size: 5.5" × 3.46" (140 × 88 mm)
• YMCKO ribbon: 400 images per roll
• Monochrome black ribbon: up to 2,000 images per roll
• USB 2.0 connectivity (plug-and-play)
• 400-card input hopper
• 100-card output hopper
• Multi-status LED operator display
• Printer host authentication and data encryption
• Print Touch NFC tag and QR code for online help
• 1-year unlimited warranty (printer and printhead)

Printing Specifications

• Direct-to-card dye diffusion printing
• Full-colour or monochrome output
• Single-sided printing
• Up to 200 cards/hour (YMCKO)
• Up to 350–425 cards/hour (monochrome)
• Photo-quality images
• Edge-to-edge printing

Printing speeds based on batch printing with USB connectivity. Actual performance may vary depending on system configuration.

Connectivity & Interfaces

• USB 2.0 (standard)
• 10/100 Ethernet (optional external print server)

Printer Drivers & Software

• Windows drivers for Windows 7, 8, 10
• Windows Server 2008 and 2012 support
• CardStudio Classic v1.3+ (single-user licence)
• Automatic ribbon type detection
• Remaining ribbon card count display
• Operator status indicators
• Advanced security, diagnostics, and configuration tools

Card Compatibility

For optimal print quality, genuine Zebra supplies are recommended.

• Card thickness: 24 mil
• Card size: 5.5" × 3.46" (140 × 88 mm)
• Material: PVC

Environmental Conditions

• Operating temperature: 10°C to 35°C
• Storage temperature: -20°C to 55°C
• Operating humidity: 20%–80% (non-condensing)
• Storage humidity: 10%–95% (non-condensing)

Electrical

• Auto-switching AC power
• 90–264V AC, 48–62 Hz

Physical Characteristics

• Dimensions: 290 × 278 × 485 mm (H × W × D)
• Weight: 19 kg (printer only)

What’s in the Box

• Zebra ZC10L ID Card Printer
• Power supply
• USB cable
• Installation disk
• User documentation
