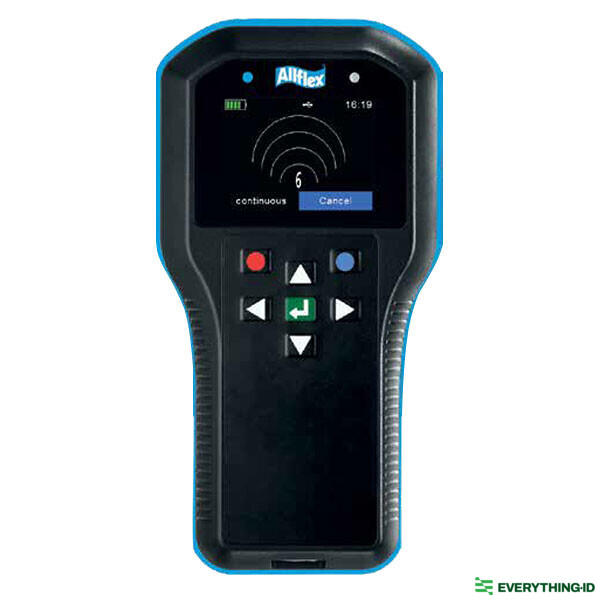

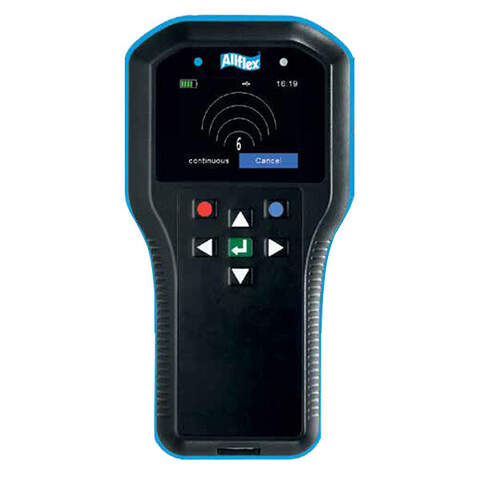

Allflex APR250 Handheld eID Reader

The Allflex APR250 Handheld eID Reader is a compact and user-friendly RFID scanning device designed for reading livestock electronic identification (eID) tags and pet microchips, including HDX and FDX-B formats. Offering advanced functionality, it combines basic eID reading with data management capabilities, making it an essential tool for livestock and pet management.

The reader's internal memory can store up to 100,000 ID numbers along with additional information, enabling efficient record-keeping. With its TASK mode, users can log animal management events such as births, vaccinations, or movements by scanning eID tags and populating custom data fields, including timestamps and weight data imported from scales via Bluetooth. The WEIGHT FROM SCALE function supports integration with major scale brands for seamless weight recording, while CONTINUOUS READ mode allows for fast batch scanning.

Connectivity options include Bluetooth and USB, with a magnetic plug simplifying USB connections for data transfer and battery charging. Bi-directional wireless communication enables remote data transfer and integration with iPhone and Android apps, supporting real-time mobile data management.

The APR250 features an ergonomic design, durable IP67 casing, and a lightweight build for easy handling. A large backlit color display ensures visibility, while LED indicators, vibration alerts, and operation-specific sounds facilitate use even in noisy environments. Powered by an integrated Li-Ion battery, it offers up to six hours of continuous read mode operation, ensuring reliability in demanding conditions.

With its combination of robust design, versatile functionality, and intuitive features, the Allflex APR250 is a top-tier choice for livestock management and pet identification.

Specifications

• Frequency: 134.2 kHz
• Transponder Types:
  • HDX compatible (ISO 11784/5)
  • FDX-B compatible (ISO 11784/5)
• Read Range:
  • 25 cm with HDX transponder (Ø 30 mm)
  • 25 cm with FDX-B transponder (Ø 30 mm)
• Synchronization: Wireless synchronization allows operation with other readers in close vicinity according to ISO 24631-2
• Interfaces:
  • USB (Virtual Comport or Mass Storage Device)
  • Class 1 Bluetooth module v4.1
  • Dual Mode: Classic (SPP, HID), BLE
• Power Supply:
  • Integrated Li-Ion Battery 3.4 Ah (12.2 Wh)
  • Internal charging via USB in max. 4 hours with supplied PSU
• Display: 2.4“ TFT (65K colours)
• Keypad: 7-button directional pad, including “OK” button and two softkeys
• Signals:
  • 2 Status LEDs above the display
  • Audio speaker
  • Vibrating motor
• Operating Temperature: -20° to 60°C
• Storage Temperature: -20° to 60°C
• Charging Temperature: 0° to 45°C
• Protection Level: IP67
• Dimensions: L x W x H: 190 x 98 x 40 mm
• Weight: Approx. 270 g
