Allflex Aleis NX-SR90C C Medium Panel Reader System Economy Model

The Allflex Livestock Intelligence Stationary Readers are perfect for reading the electronic identification (EID) tags of large animal groups in permanent locations like farms, sale yards, and abattoirs. They're built tough to endure Australia's harsh weather conditions and designed to excel in livestock industry environments, offering top-notch reading performance, reliability, and durability.

The Allflex NX Series Stationary Readers deliver superior reading performance for livestock EID tags in high-traffic areas like scales, drafters, and sorting gates on farms, stockyards, abattoirs, and similar sites.

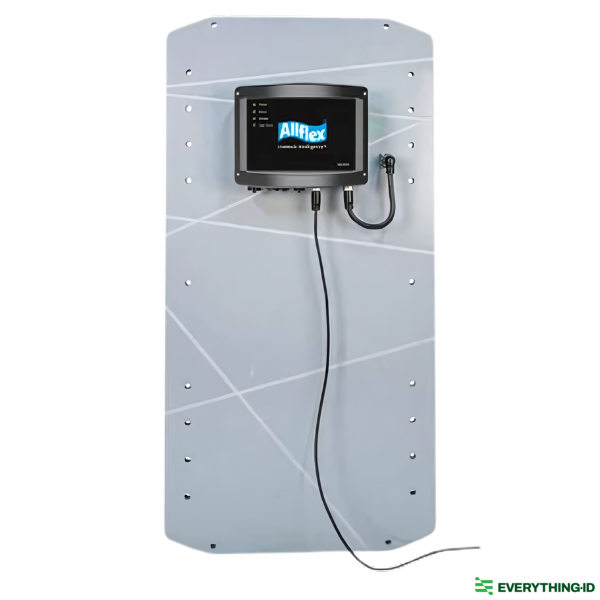

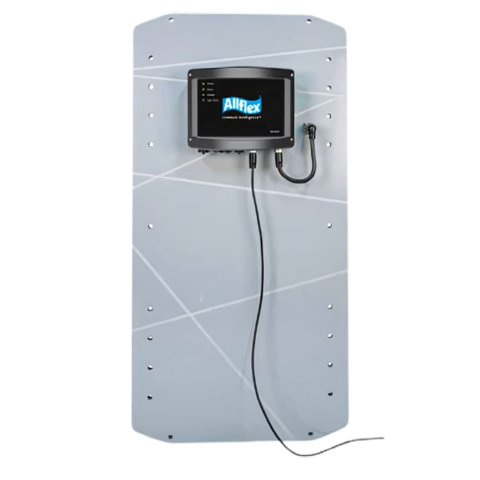

LED indicators, serial only, no storage. 90 x 45cm antenna.

Required 12v power source (sold separately).

Features

High reliability - Proven, industrial-quality readers built to withstand harsh conditions and exacting performance demands.

Serial connectivity - Reliable data transmission via serial data port and cable, included with the reader.

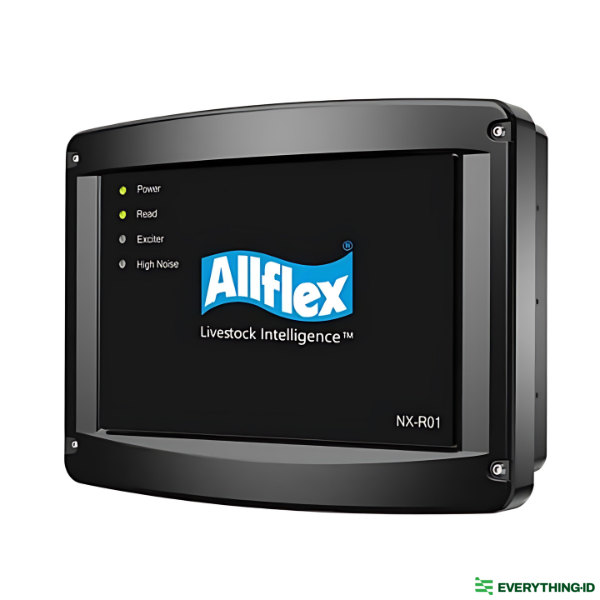

Easy and flexible - LED indicators provide at-aglance status. The modular design enables easy upgrades and system expansion, protecting the original investment as needs change.

Specifications

• Frequency: 134.2Khz, bit 1 124.2Khz +/-2Khz, bit 0 134.2Khz +/-1.5khz
• RFID Compatibility: ISO 11784 &11785 HDX and FDX-B
• User Interface: NX-R = RS-232 only
• RS-232 Port: 9600bps, 8 data bits, no parity, 1 stop bit
• RFID Code Output: Decimal or hex
• Antenna Tuning: Auto or manual
• Battery Power: 12-14 Volt DC
• Operating Temperature: -20°C to 60°C / -4°F to 140°F
• Storage Temperature: -40°C to +85°C / -40°F to 185°F
• Humidity: 0 to 100%
• Hermeticity: IP66
• HDX: Up to 1.4M Antenna Dependent
• FDX: Up to 1.2M Antenna Dependent
