Dominion Waldo's Hydraulic Dehorner

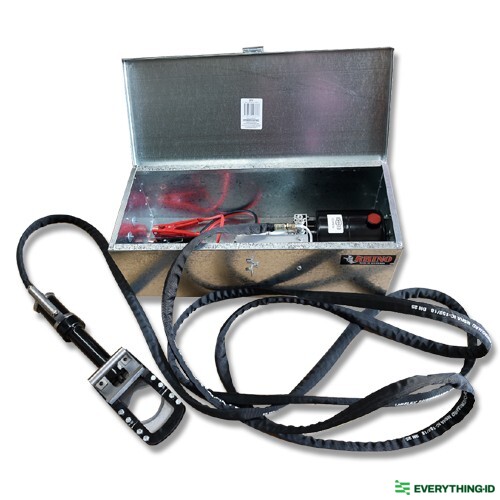

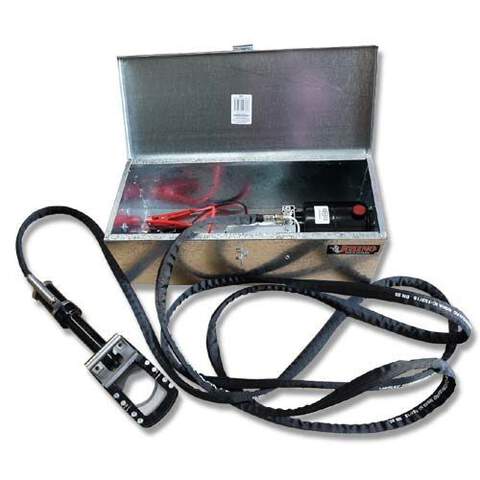

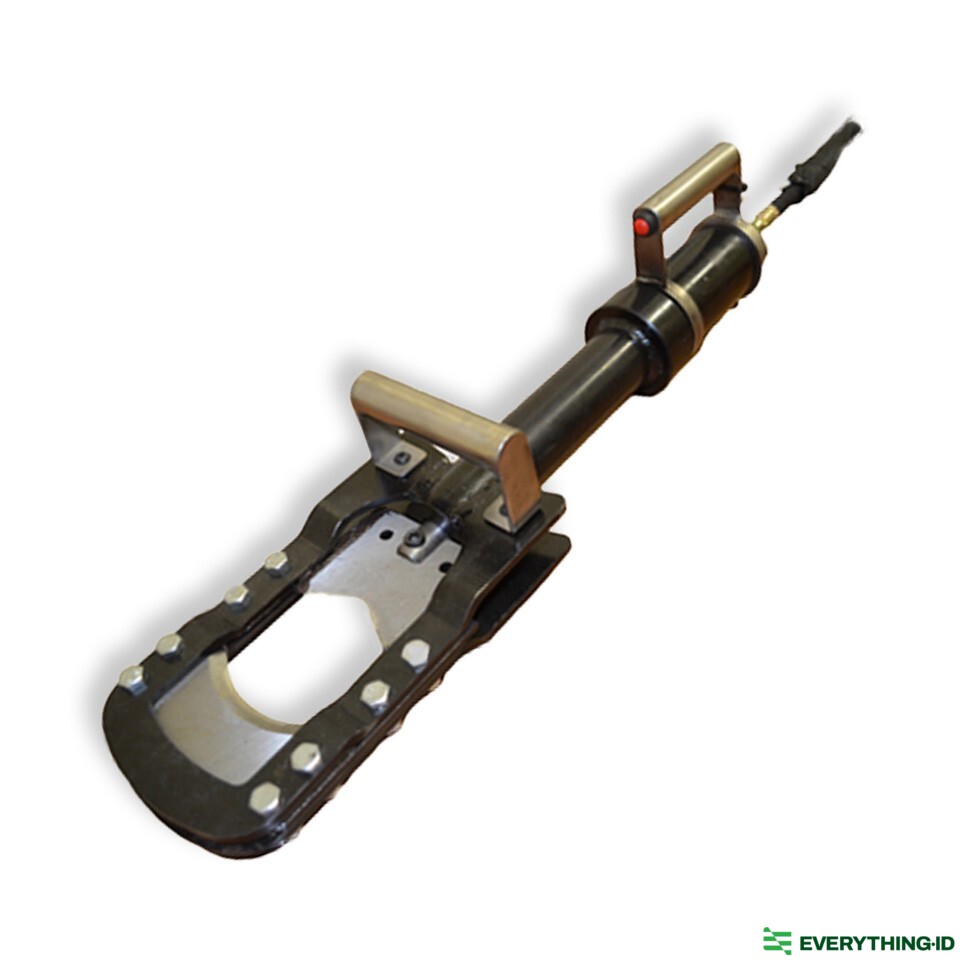

This hydraulic dehorner uses a portable hydraulic motor to drive a handheld hydraulic guillotine which shears off a horn in under 2 seconds.

The Waldo's Horn Buster has been sold in Australia since 1990. From 2014, the manufacturing was assumed by Dominion Surgical Instruments and a new and improved version has been released.

Full range of spare parts available

Made in Australia

How to use?

• Connect to a 12 volt battery with a minimum 720 CCA system of sufficient size and condition with motor running to charge battery
• Disconnect unit when not in use.
• Never place hands or other body parts near blades.
• Hold unit only by handles provided.
• The oil level should be checked daily. Use only quality 32 weight hydraulic oil if required.
• Keep moving components lubricated.
• Check all components for serviceability before each use.
• Press and hold the momentary button switch on the rear handle to engage the power and activate the ram / bottom blade. It takes approximately 2 seconds for the blade to fully extend.
• The stroke length is preset so as to ensure that the shaft stops short of the top fixed blade.
• When the horn has been cut off, release the switch to allow the ram to retract. DO NOT KEEP THE POWER ENGAGED.
• Do not hang or stretch cables. Position close to power source
• Take care when removing from and replacing unit in the container. Do not force.
• Do not tightly bend hoses or put pressure on the hose connections.

Specifications

• Blade Opening: 75mm
• Lead: 7.5cm
• Total Box Weight: Approx 30kg
