Cel-Fi GO4 Indoor / Outdoor Pack

Cel-Fi GO4 operates on more frequency bands and can be easily switched between Telstra, Optus and Vodafone / TPG (one carrier at a time) should you change service providers. Expanding on GO2’s dual-band functionality, GO4 supports carrier aggregation with 40 MHz of relay bandwidth.

This pack is ideal where you have reception problems at a site and you want to increase mobile signal both indoors and outdoors using one Cel-Fi GO unit. The external antenna is affixed on the rooftop collecting the mobile signal from outside and transferring it to Cel-Fi GO. The indoor panel antenna boosts it internally (within the house) whilst the MARS Antenna is cabled to the outdoor area and boosts a targeted signal external to the building. This set-up has been used successfully in cattle-yard, farming and residential applications.

Choose between the following configurations by selecting your indoor and external antennas in the above drop down boxes:

* RPR-CF-00852 : Cel-Fi GO4 (G41) + Wall Mount Indoor Antenna + LPDA External Antenna

* RPR-CF-00853 : Cel-Fi GO4 (G41) + Ceiling Dome Indoor Antenna + LPDA External Antenna

* RPR-CF-00854 : Cel-Fi GO4 (G41) + Wall Mount Indoor Antenna + Omni External Antenna

* RPR-CF-00855 : Cel-Fi GO4 (G41) + Ceiling Dome Indoor Antenna + Omni External Antenna

Features:

• 700L/850/900/1800/2100/2600 MHz (700 bands not supported on Vodafone)
• 3G, 4G, VoLTE, NB-IoT (GO4 has 5G capabilities, but is currently not enabled or approved)
• Carrier Switching using WAVE App between Telstra, Optus or Vodafone – one carrier at a time
• Up to 3000 m2 coverage area
• Two band simultaneous relay
• Total System Relay Bandwidth – Up to 40 MHz
• Remote Monitoring, Control and Alert Capabilities via WAVE Portal (for approved installers)
• Ethernet Port for connection to internet source for live monitoring

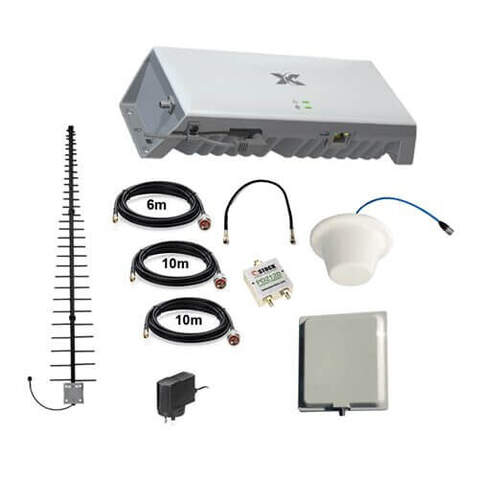

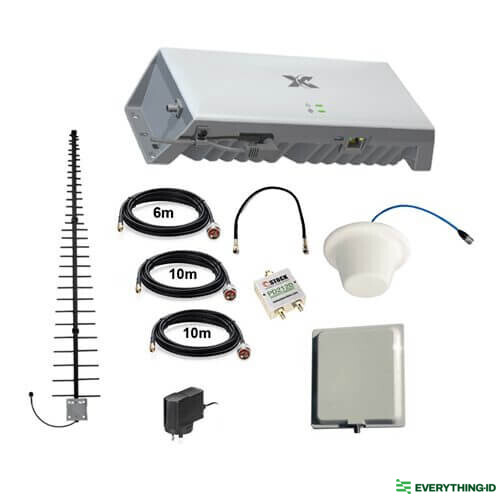

What's Included:

• Cel-Fi GO4 1/3/5/7/8/28L/40 Stationary Repeater (Switchable between Telstra, Optus and Vodafone-TPG) – one carrier at a time
• Warranty: 3 year manufacturer's warranty
• Choice of internal antenna:

         - Blackhawk Ceiling Dome 698-4000 2/5dBi Antenna -150dBc PIM

• Choice of external antenna:

• 2 x 10m PT240 LSHF cable
• 1 x 6m PT240 LSHF cable
• MARS Panel Antenna 698-2700 5dBi plus mount
• Wireless 700-2700Mhz 2 Way DAS Splitter/Combiner SMA/F, RoHS, High Isolation
