RFID Electronic Cabinet Lock Hidden DIY for Wooden Locker Drawer Meter Box Cupboard

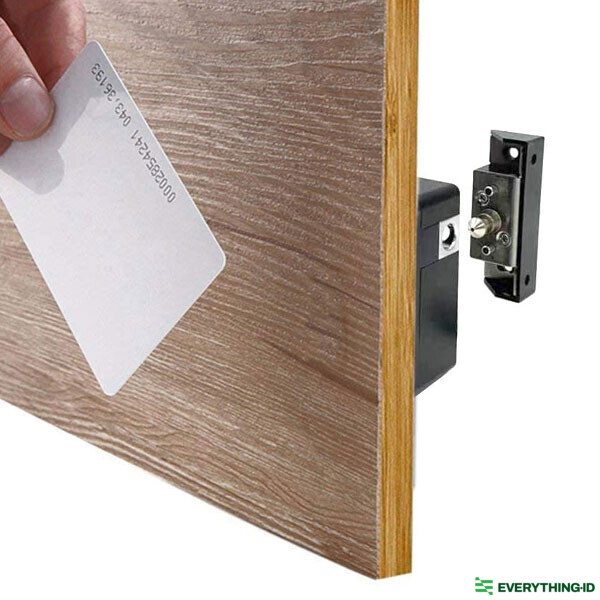

Introducing RFID Electronic Cabinet Lock system, which is easy to install and convenient. With this lock, there is no need to drill holes or worry about damaging your cabinet. It provides a hassle-free solution for securing your cabinets while keeping them intact.

It features an auto-rebounce and auto-lock function, making it easy to use and ensuring your cabinet stays securely locked. The lock components are made of stainless steel latch and ABS plastic lock body, providing durability and resistance against corrosion.

The lock system offers the convenience of using a master card to open multiple locks. You only need to keep one key to control all the locks, reducing the need for multiple keys. This feature provides ease of access and simplifies lock management.

The motor of the lock has a lifespan of approximately 100,000 uses, ensuring long-lasting performance. Additionally, the lock has low static power consumption, using less than 5μA of power, which helps to conserve energy.

Powering the lock is simple with 4 AA alkaline batteries. These batteries provide extended usage, lasting for more than 12 months before needing replacement. With this long battery life, you can rely on the lock for an extended period without frequent battery changes.

The lock comes pre-configured with a master card/keychain, eliminating the need for programming or activation. Simply install the batteries, and you're ready to use the lock immediately.

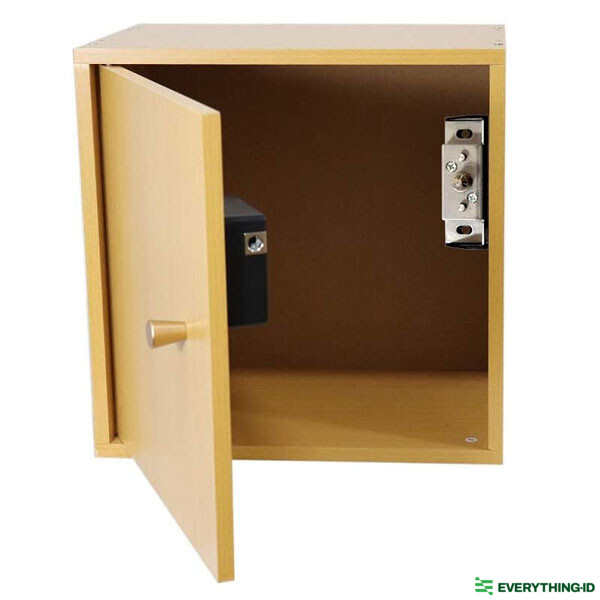

This lock system is suitable for wooden doors and is widely used for various applications such as drawers, lockers, cabinets, and sliding doors. Its stand-alone functionality ensures that all cards can be recognized without worrying about the problem of losing a specific card.

Key specifications:

• Color: Black
• Material: Stainless steel, ABS plastic
• Accept Cabinet or Wardrobe Door Thickness: Within 30mm
• Apply Door: Wooden door only
• Power Supply: 4 * AA batteries (Not Included)
• Battery Life Span: ≥1.5 Years
• Operating Temperature: -30°C to +80°C
• Relative Humidity: Less than 95% RH
• Anti-static Behavior: Greater than 15,000V, information can be saved even in strong static conditions
• Static Power Consumption: Less than 5μA
• Dynamic Power Consumption: Approximately 200mA
• Low Voltage Alarm: Less than 2.4V
• Can Be Connected to Emergency Standby Power Supply: Yes

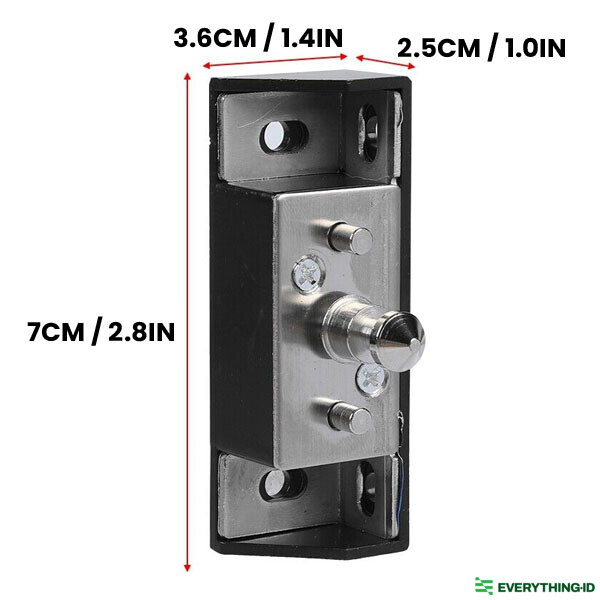

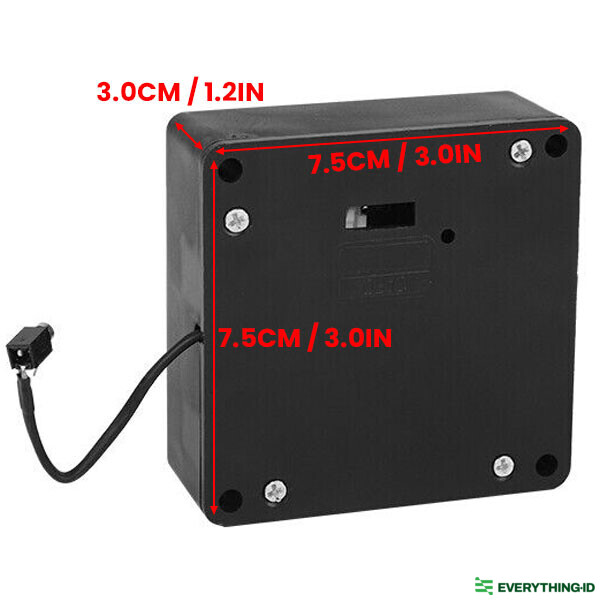

• Size: Lock Body: 7.57.53.0cm / 3.03.01.2in | Door Holder: 73.62.5cm / 2.81.41.0in | ID Card: 8.55.5cm / 3.32.2in
• Package Weight: 197g / 6.9oz
