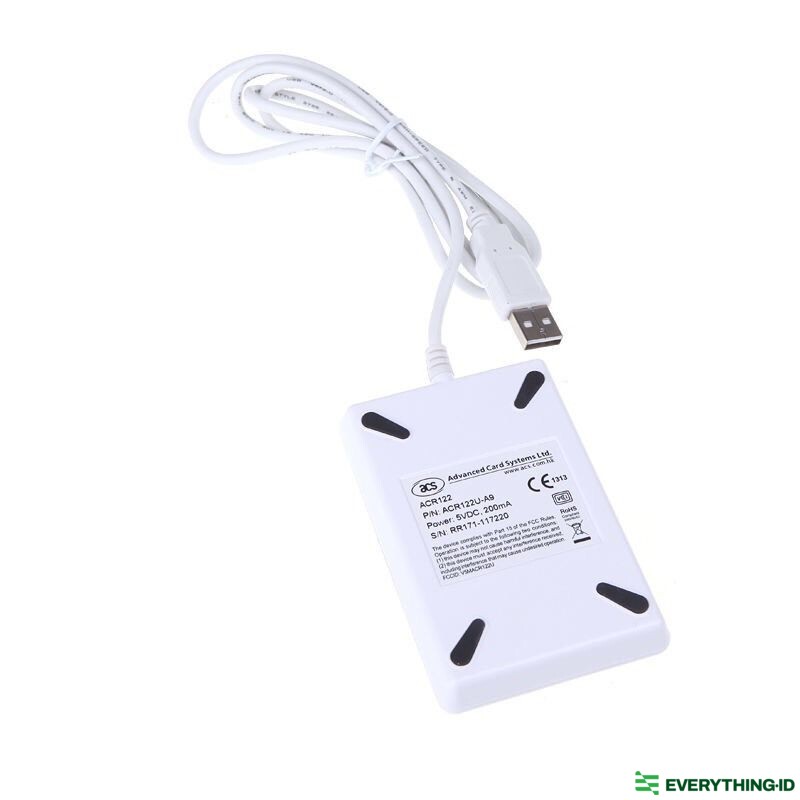

ACR122U USB NFC Reader

This plug-and-play USB device is used for many different purposes and there are many third party software applications that have been developed for it. It is a PC-linked contactless smart card reader/writer developed based on 13.56 MHz Contactless (RFID) Technology. Compliant with the ISO/IEC18092 standard for Near Field Communication (NFC), it supports not only MIFARE® and ISO 14443 A and B cards, but also four types of NFC tags.

The ACR122U NFC Reader was originally often used for secure personal identity verification and online micro-payment transactions and is now commonly used for:

• SDK Reader for POS & other third party software & hardware.

• Reading, Writing & Duplicating MIFARE Classic, MIFARE Ultralight, DESFire & FeliCa tags. Commonly with UID tags & UID Changeable Special tags with software such as the PCSC Mifare Program software.

• Writing NFC Business Cards and other NFC tags. Commonly with NTAG215 tags with the NFC Tools (PC/Mac) software.

Features:

• USB 2.0 Full Speed Interface
• CCID Compliance
• Read/write speed up to 424 kbps
• Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
• Supports ISO 14443 Type A and B cards, MIFARE, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
• Built-in anti-collision feature (only 1 tag is accessed at any time)
• Supports PC/SC
• Supports CT-API (through wrapper on top of PC/SC)
• User-controllable bi-color LED
• User-controllable buzzer
• Supports Android™ OS 3.1 and above

Specifications:

• Dimensions: 98mm (L) x 65mm (W) x 12.8mm (H)
• Weight: 70g
• Protocol (USB): CCID
• Power Source : From USB port
• Speed: USB Full Speed (12 Mbps)
• Cable Length : 1.0 m, Fixed
• Standard: ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE®, FeliCa
• Protocol (Card): ISO 14443-4 Compliant Card, MIFARE® Classic Card, ISO18092, NFC Tags , FeliCa

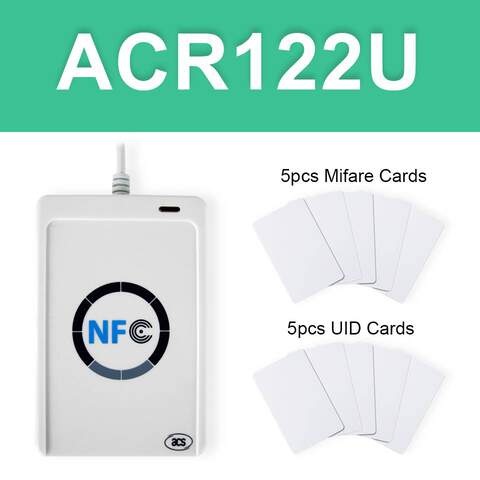

What's in the box:

• 1 x ACR122U NFC Reader
• 5 x Mifare Cards
• 5 x UID Cards
