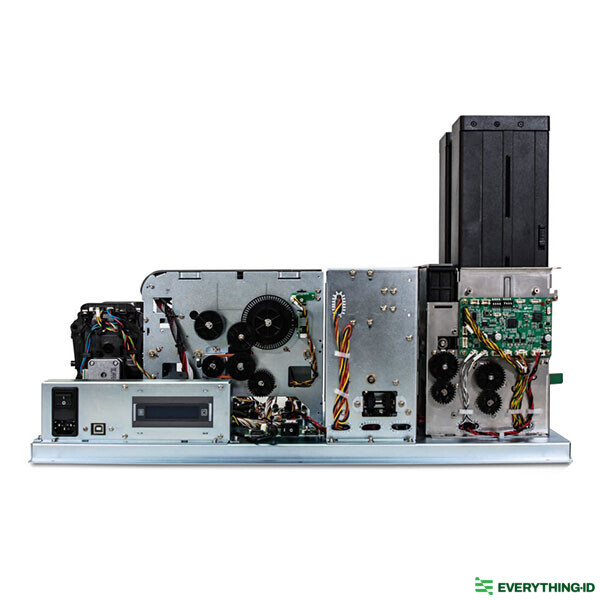

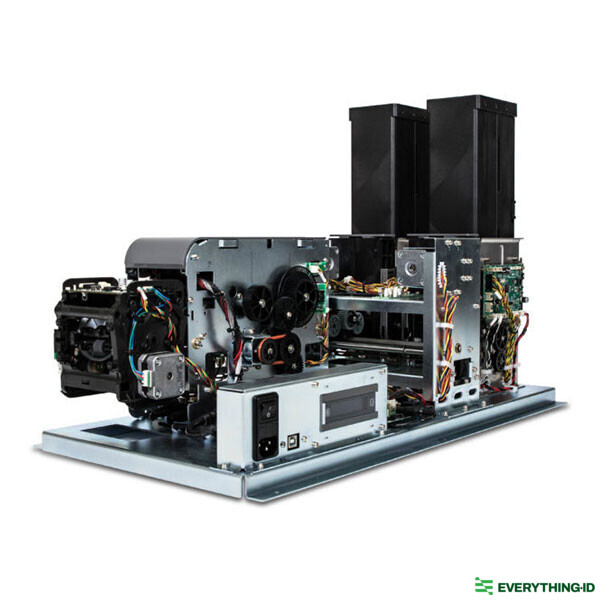

IDP Smart 51SK - Single Sided - Kiosk Card Printer

The IDP Smart 51SK (Single Sided) Kiosk Card Printer is a reliable and compact printing solution designed for kiosk environments. This printer offers a range of features and customizable options to meet specific printing requirements.

The IDP Smart 51SK (Single Sided) Kiosk Card Printer is a versatile and efficient printing solution for kiosk environments. Its customizable features, high-speed printing capabilities, and compatibility with various card types make it suitable for a wide range of applications, including self-service kiosks, ticketing systems, and access control.

Specifications

• Print Mode: Single Sided
• Print Type: Direct Dye-Sublimation
• Print Area: Edge to Edge
• Resolution: 300 dpi
• Card Feeding: Automatic or Hopper Selectable
• Card Size: ISO CR80 or ISO CR79 (Option - Factory installed)
• Card Thickness: 0.38mm (15mil) to 1.0mm (40mil)
• Card Type: PVC, PET, Composite PVC
• Monochrome: 5 seconds per card (720 cards/hour)
• YMCKO: Maximum 17 seconds per card (212 cards/hour)
• YMCKOK: Maximum 22 seconds per card (164 cards/hour)
• Input Card Hopper: 1 to 4 Hopper system Selectable
• Output Card Hopper: 300 or 500 card selectable refillable cartridges
• Interface: 2 Line LCD / 2 LED Buttons
• Supported Platforms: Microsoft Windows 7/8/10
• Communication: USB, Ethernet (Option)
• Power Supply: Free Voltage (AC100/220V, 50~60Hz)
• Humidity: 35~70%
• Temperature: 15~35℃
• Magnetic: ISO 7811 (Track I, II, III Read/Write, HiCo/LoCo), JIS II
• Contact: ISO 7816 A/B/C Card, ISO 7816 1/2/3/4 Microprocessor Card
• Contactless: ISO 14443 (Type A/B), MIFARE, DESFIRE, iCLASS, ISO 18092(NFC), Felica
• Standard 3 year warranty

Features

• Selectable Hoppers: The printer supports up to four selectable hoppers, allowing for easy card selection and printing based on your specific needs.
• Refillable Cartridges: You can choose between 300 or 500 card refillable cartridges, providing flexibility for your printing volume.
• High-Speed Printing: The printer can achieve print speeds of up to 212 cards per hour for YMCKO printing, ensuring efficient and fast card production.
• Encoding Options: The IDP Smart 51SK can be equipped with various encoding options, such as magnetic stripe encoding (ISO 7811), contact encoding (ISO 7816), and contactless encoding (ISO 14443, MIFARE, DESFIRE, iCLASS, ISO 18092 NFC, Felica).
• Compact and Customizable Design: The printer features a compact and reliable design suitable for kiosk installations. Additionally, the bottom plate can be customized to fit specific requirements, such as size, layout of the control panel, and adaptor placement.
• Print Modes: The printer supports both single-sided and dual-sided printing, allowing you to choose the appropriate mode based on your card design and requirements.
• Print Type and Area: The IDP Smart 51SK uses direct dye-sublimation printing technology, offering edge-to-edge printing capabilities. The printer achieves a resolution of 300 dpi for clear and detailed prints.
• Card Compatibility: The printer supports various card sizes, including ISO CR80 and ISO CR79. It can handle card thicknesses ranging from 0.38mm (15mil) to 1.0mm (40mil). Compatible card types include PVC, PET, and composite PVC.
