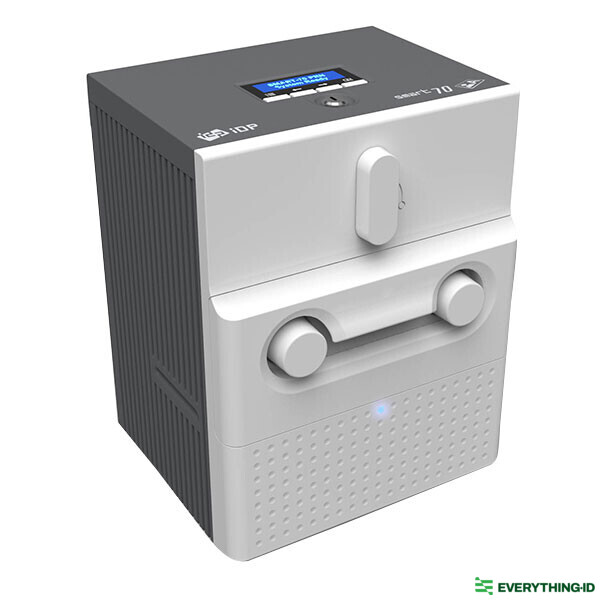

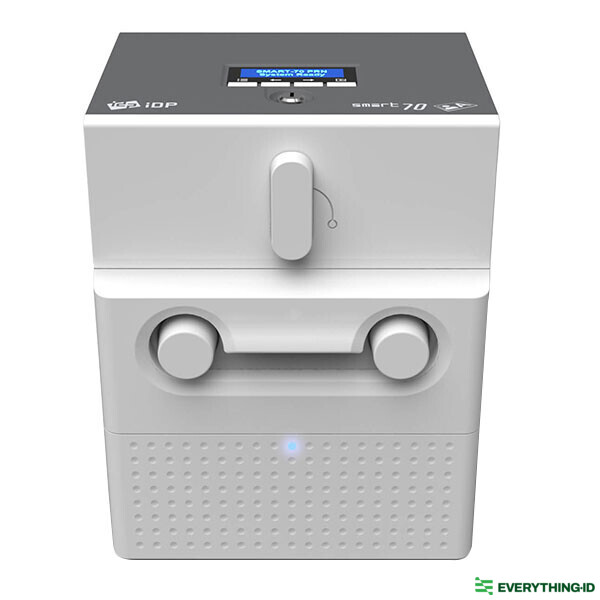

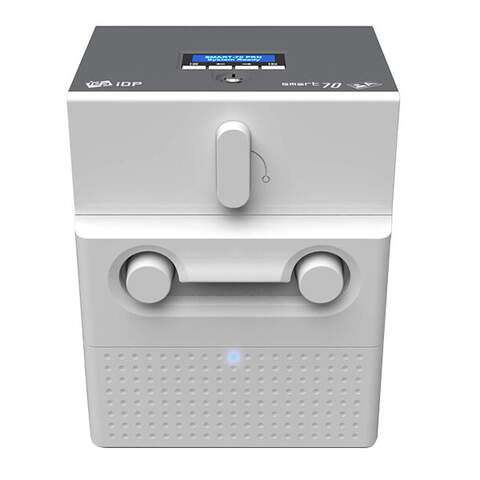

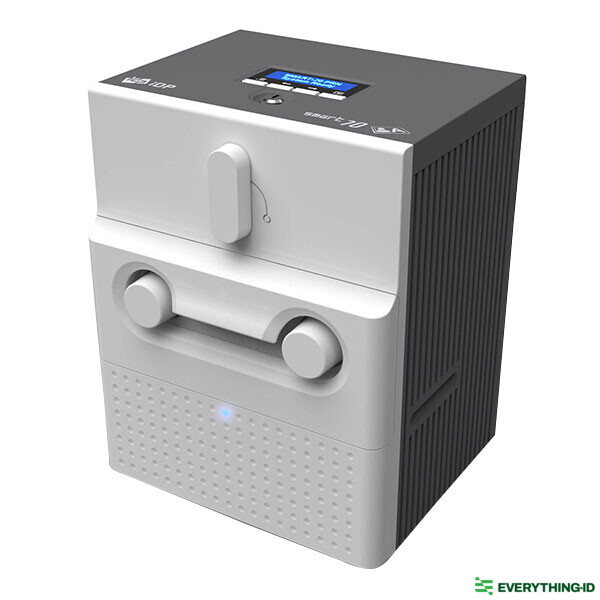

IDP Smart 70 Module - Printer

The IDP Smart 70 Module - Printer is a versatile module that offers high-quality card printing capabilities. Please note that the "Input Hopper" Module needs to be purchased separately for this printer module. If dual-sided printing is required, the "Hybrid Flipper" Module should also be added.

Specifications

• Print Type: Direct Dye-Sublimation
• Printing: Print Area Edge to Edge
• Resolution: 300dpi
• Card Feeding: Automatic
• Card Size: ISO CR80 (54mm x 86mm / 2.12" x 3.38")
• Card Thickness: 0.38mm (15mil), 1.2mm (47mil)
• Card Types: PVC, Composite PVC, PET
• Monochrome Print Speed: 3.6 seconds per card (1,000 cards/hour)
• YMCKO Print Speed: 18 seconds per card (200 cards/hour)
• YMCKOK Print Speed: 24 seconds per card (150 cards/hour)
• Max. Print Speed: 16 seconds per card (225 cards/hour)
• Max. Print Speed (YMCKOK): 22 seconds per card (164 cards/hour)
• Input Hopper Capacity: 500 cards
• Output Hopper (Card Stacker) Capacity: 100 cards (Optional Output Hopper: 500 cards)
• Memory: 64MB RAM
• System Interface: 2 Line LCD / 4 Buttons / 1 LED Indicator
• Supported Platforms: Microsoft Windows 2000/2003/XP/Vista/7/8, Mac OS, Linux
• Communication: USB, Ethernet
• Power Supply: Free Voltage (AC100 / 220V, 50~60Hz)
• Power Consumption: 24V, 2A
• Operating Temperature / Humidity: 1535°C / 3570%
• Physical Lock: Print ribbon Security
• Software Security: PC authentication, Password authentication
• Station Security: Kensington Lock
• Dimensions (mm): 240 (W) x 214 (L) x 305 (H)
• Dimensions (inch): 9.5 (W) x 8.4 (L) x 12 (H)
• Weight: Approx. 6.3 kg / 13.9 lbs.
