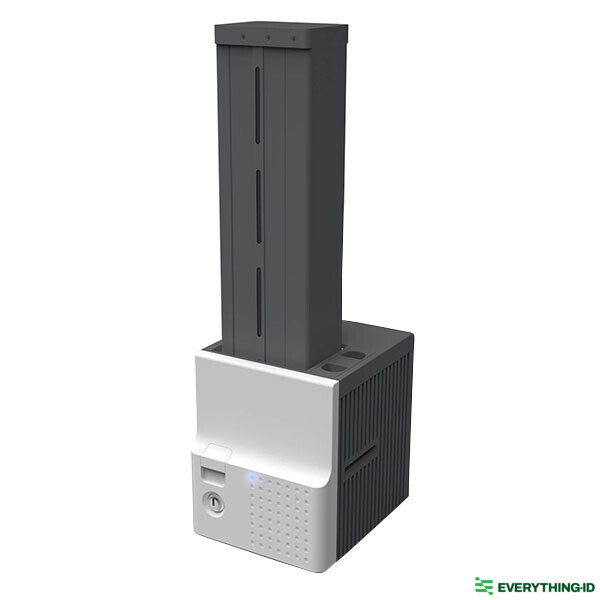

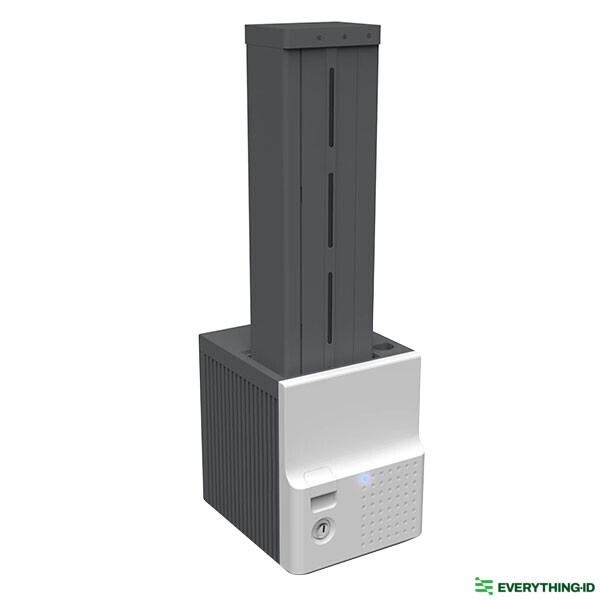

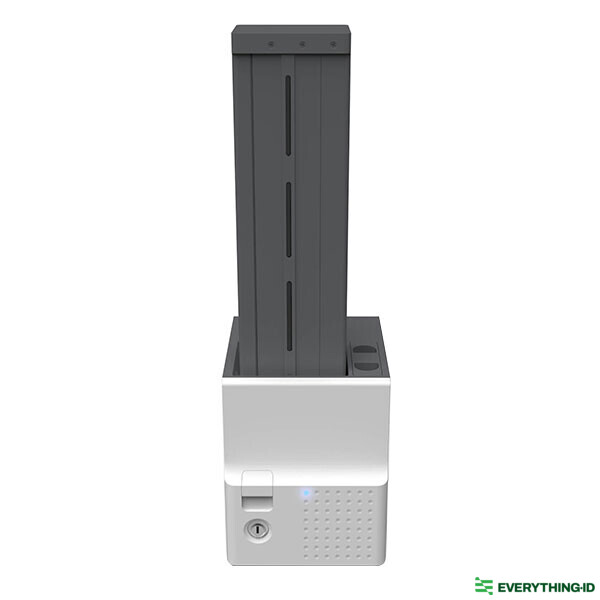

IDP Smart 70 Module - Input Hopper

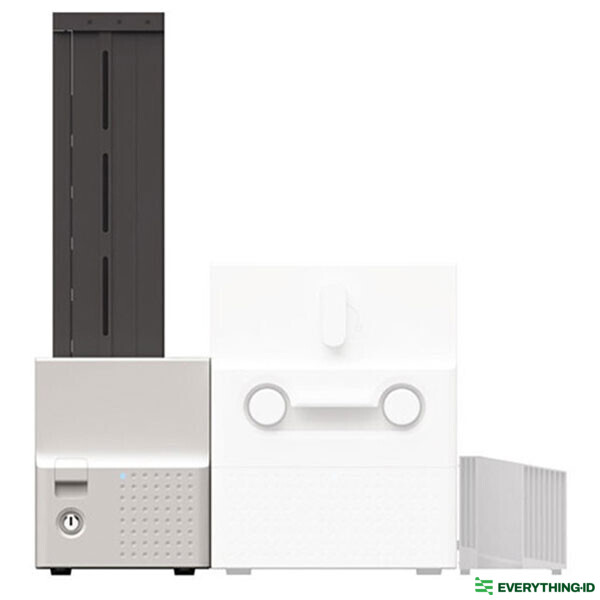

The IDP Smart 70 Module - Input Hopper is a separate module that can be connected to the Smart 70 Printer Module (sold separately). The Input Hopper module provides enhanced card handling capabilities for the IDP Smart 70 printer system. By adding the Input Hopper module to your Smart 70 Printer Module, you can efficiently handle a larger card capacity and enjoy automated card feeding for streamlined card printing processes. The physical lock and Kensington lock provide added security measures for the module, ensuring the safety of your card printing operations.

Input Hopper Specifications

• Card Capacity: Max. 500 cards
• Feeding: Automatic
• Size: ISO CR80 (54mm x 86mm / 2.12" x 3.38")
• Card Thickness: 0.38mm (15mil), 1.2mm (47mil)
• Card Types: PVC, Composite PVC, PET
• Residual Quantity Sensor: Near Empty & Empty Sensor
• Cartridge Mount Status Detection Sensor: Detectable
• Communication: USB, RS-232C
• System Power: Free Voltage (AC100 / 220V, 50~60Hz) / 24V, 2A
• Physical Lock: Cartridge
• Station Security: Kensington Lock
• Dimensions (mm): 170 (W) x 204 (L) x 548 (H)
• Dimensions (inch): 6.7 (W) x 8.0 (L) x 21.6 (H)
• Weight: Approx. 3.7 kg / 8.2 lbs.
• 24 Months, Return to Base Warranty
