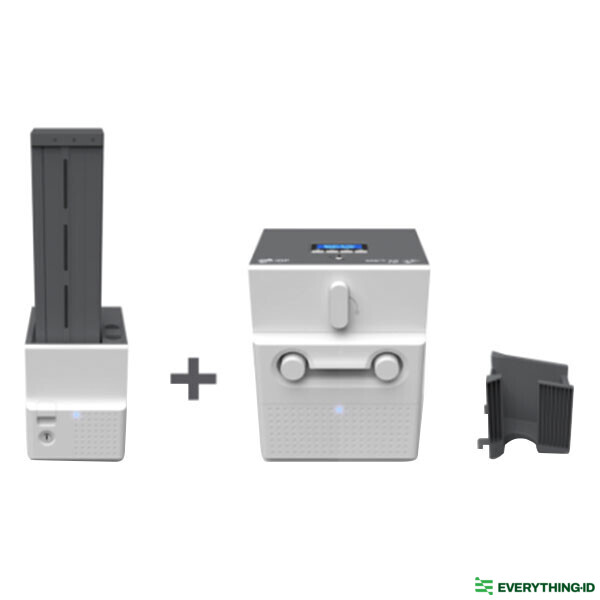

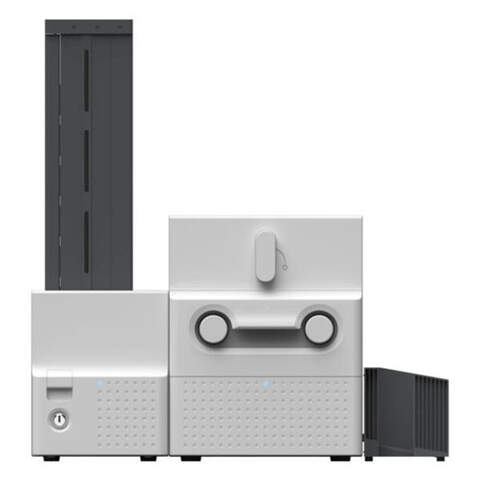

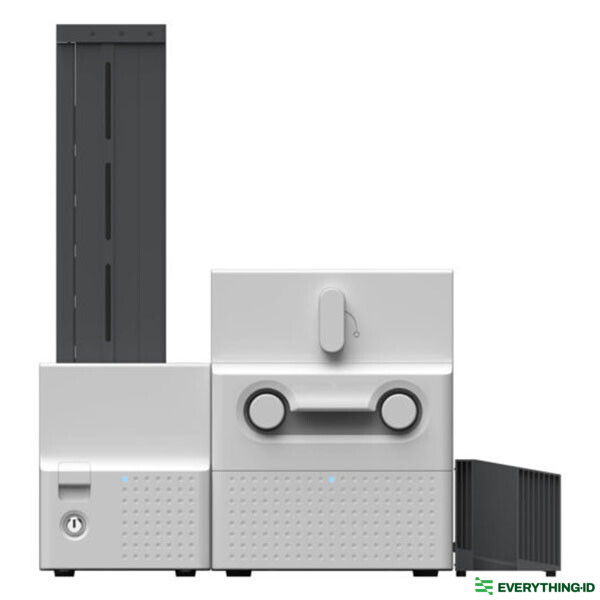

IDP Smart 70 (IL) Laminator with Input Hopper

IDP Smart 70 (IL) - Laminator with Input Hopper is a versatile component of the IDP Smart 70 System that allows you to laminate ID cards with a clear or hologram patch, providing increased durability and enhanced security. This module is designed to work seamlessly with the IDP Smart 70 System, and the best part is that it does not require a separate PC for operation.

Input Hopper Specifications

• Card Capacity: Max. 500 cards
• Feeding: Automatic
• Size: ISO CR80 (54mm x 86mm / 2.12" x 3.38")
• Card Thickness: 0.38mm (15mil), 1.2mm (47mil)
• Card Types: PVC, Composite PVC, PET
• Residual Quantity Sensor: Near Empty & Empty Sensor
• Cartridge Mount Status Detection Sensor: Detectable
• Communication: USB, RS-232C
• System Power: Free Voltage (AC100 / 220V, 50~60Hz) / 24V, 2A
• Physical Lock: Cartridge
• Station Security: Kensington Lock
• Dimensions (mm): 170 (W) x 204 (L) x 548 (H)
• Dimensions (inch): 6.7 (W) x 8.0 (L) x 21.6 (H)
• Weight: Approx. 3.7 kg / 8.2 lbs.

Laminator Specifications

• Lamination Type: Direct Heating Lamination
• Laminating Speed: 14 seconds per card (Single-sided Laminating)
• Laminating Types: Clear, Holographic
• Laminating Film Thickness: 0.6mil, 1.0mil
• Laminating Film Capacity: 500 cards per Roll
• System Interface: 2 Line LCD / 4 Buttons / 1 LED Indicator
• Communication: USB, RS-232C
• Power Supply: Free Voltage (AC100 / 220V, 50~60Hz)
• Power Consumption: 24V, 2A
• Operating Temperature / Humidity: 1535°C / 3570%
• Physical Lock: Laminating Film Security
• Station Security: Kensington Lock
• Dimensions (mm): 240 (W) x 214 (L) x 305 (H)
• Dimensions (inch): 9.5 (W) x 8.4 (L) x 12 (H)
• Weight: Approx. 6.1 kg / 13.4 lbs.
