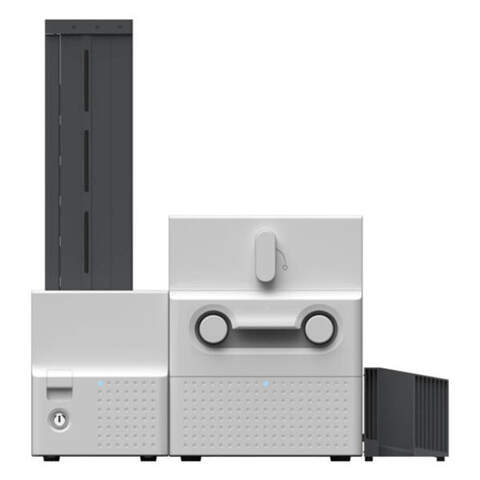

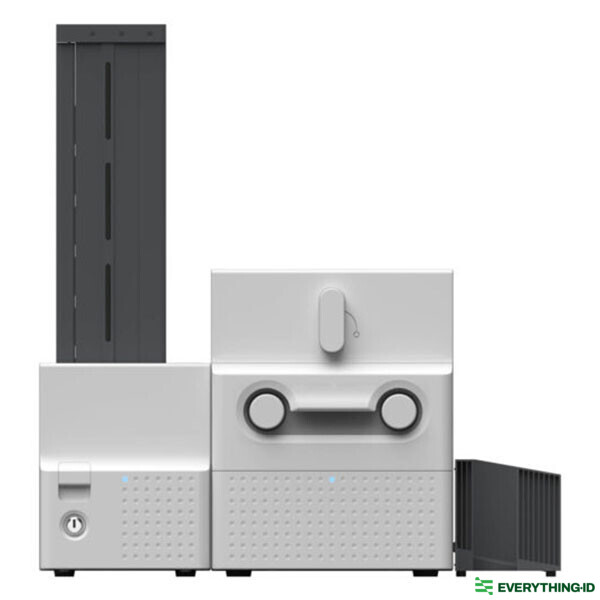

IDP Smart 70 (IPO) - Simplex Single Sided - Card Printer with Input & Output Hopper

The IDP Smart 70 (IPO) System is a versatile single-sided printer designed to meet your card printing needs efficiently. With its automatic feeding feature, you can easily print a large number of cards without manual intervention. The printer supports various card sizes, including ISO CR80 (54mm x 86mm / 2.12" x 3.38"), and can handle card thicknesses of 0.38mm (15mil) and 1.2mm (47mil). It supports different card types such as PVC, Composite PVC, and PET.

Equipped with a residual quantity sensor, the printer ensures that you are notified when the card supply is near empty or completely empty. The cartridge mount status is also detectable, providing convenience and peace of mind during printing operations. The printer offers USB and Ethernet communication options for seamless connectivity.

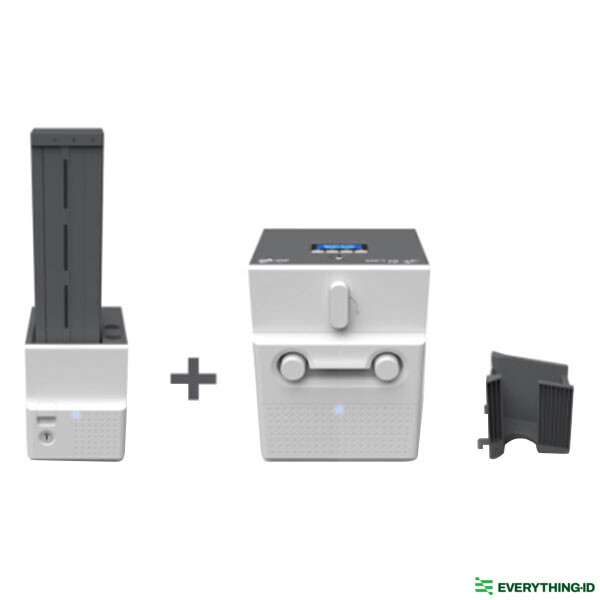

The IDP Smart 70 System comes with an input hopper that can hold up to 500 cards, while the optional output hopper allows for convenient stacking of up to 100 cards or 500 cards, depending on the chosen configuration. The printer is equipped with 64MB RAM and offers a user-friendly interface with a 2-line LCD, 4 buttons, and 1 LED indicator.

Specifications

• Print Type: Direct Dye-Sublimation
• Printing: Print Area Edge to Edge
• Resolution: 300dpi
• Card Feeding: Automatic
• Card Size: ISO CR80 (54mm x 86mm / 2.12" x 3.38")
• Card Thickness: 0.38mm (15mil), 1.2mm (47mil)
• Card Types: PVC, Composite PVC, PET
• Monochrome Print Speed: 3.6 seconds per card (1,000 cards/hour)
• YMCKO Print Speed: 18 seconds per card (200 cards/hour)
• YMCKOK Print Speed: 24 seconds per card (150 cards/hour)
• Max. Print Speed: 16 seconds per card (225 cards/hour)
• Max. Print Speed (YMCKOK): 22 seconds per card (164 cards/hour)
• Input Hopper Capacity: 500 cards
• Output Hopper (Card Stacker) Capacity: 100 cards (Optional Output Hopper: 500 cards)
• Memory: 64MB RAM
• System Interface: 2 Line LCD / 4 Buttons / 1 LED Indicator
• Supported Platforms: Microsoft Windows 2000/2003/XP/Vista/7/8, Mac OS, Linux
• Communication: USB, Ethernet
• Power Supply: Free Voltage (AC100 / 220V, 50~60Hz)
• Power Consumption: 24V, 2A
• Operating Temperature / Humidity: 1535°C / 3570%
• Physical Lock: Print ribbon Security
• Software Security: PC authentication, Password authentication
• Station Security: Kensington Lock
• Dimensions (mm): 240 (W) x 214 (L) x 305 (H)
• Dimensions (inch): 9.5 (W) x 8.4 (L) x 12 (H)
• Weight: Approx. 6.3 kg / 13.9 lbs.

Input Hopper Specifications

• Card Capacity: Max. 500 cards
• Feeding: Automatic
• Size: ISO CR80 (54mm x 86mm / 2.12" x 3.38")
• Card Thickness: 0.38mm (15mil), 1.2mm (47mil)
• Card Types: PVC, Composite PVC, PET
• Residual Quantity Sensor: Full Space
• Cartridge Mount Status Detection Sensor: Detectable
• Communication: USB, RS-232C
• System Power: Free Voltage (AC100 / 220V, 50~60Hz) / 24V, 2A
• Physical Lock: Cartridge
• Station Security: Kensington Lock
• Dimensions (mm): 170 (W) x 204 (L) x 548 (H)
• Dimensions (inch): 6.7 (W) x 8.0 (L) x 21.6 (H)
• Weight: Approx. 3.5 kg / 7.6 lbs.

Input Hopper Specifications

• Card Capacity: Max. 500 cards
• Feeding: Automatic
• Size: ISO CR80 (54mm x 86mm / 2.12" x 3.38")
• Card Thickness: 0.38mm (15mil), 1.2mm (47mil)
• Card Types: PVC, Composite PVC, PET
• Residual Quantity Sensor: Near Empty & Empty Sensor
• Cartridge Mount Status Detection Sensor: Detectable
• Communication: USB, RS-232C
• System Power: Free Voltage (AC100 / 220V, 50~60Hz) / 24V, 2A
• Physical Lock: Cartridge
• Station Security: Kensington Lock
• Dimensions (mm): 170 (W) x 204 (L) x 548 (H)
• Dimensions (inch): 6.7 (W) x 8.0 (L) x 21.6 (H)
• Weight: Approx. 3.7 kg / 8.2 lbs.
